SK3

90 km/h

Top Speed

70 km

Range

(with 45 kph)

6.3 KW

Peak Power

Power

EVERY ACCELERATION THRILLS THE NERVE

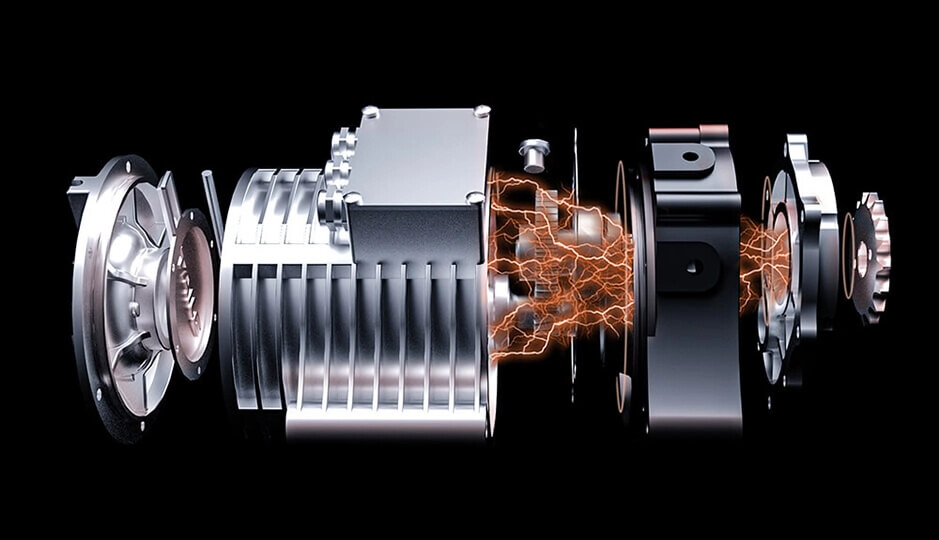

The Center Motor generates an output of 6.3 kw at a speed of 90km/h.

EQUIPMENT COMFORTABLE HANDLING

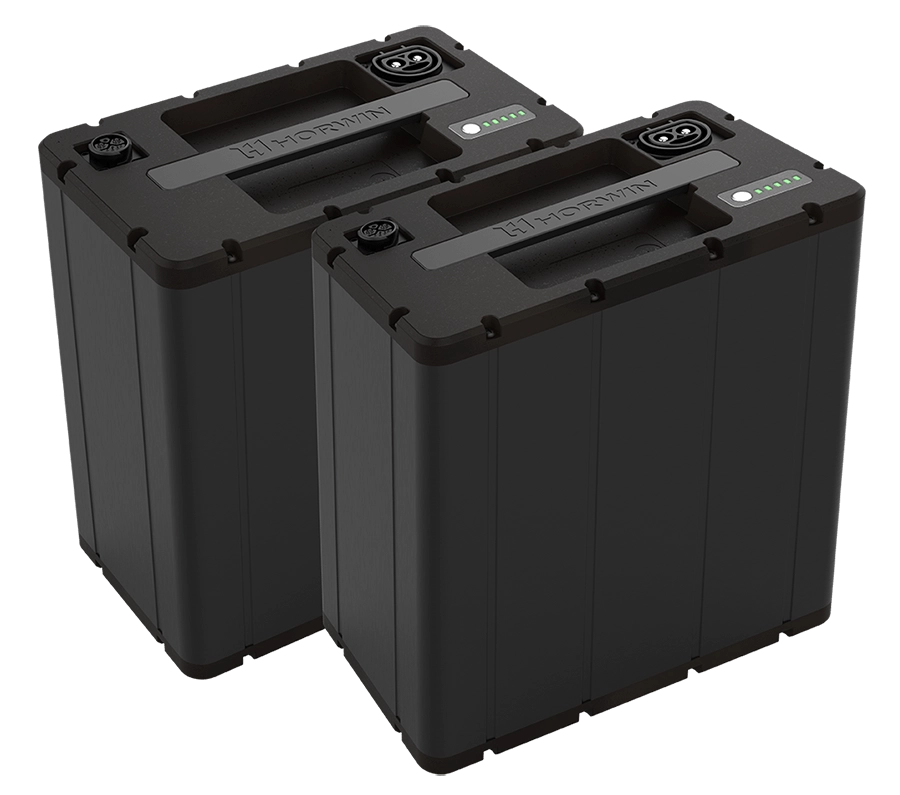

The range is up to 120 km with an optional second battery. The keyless start of the vehicle is another highlight and simplifies the handling of the SK3.

battery7236

EVERY LIGHTING ACCOMPANIES YOU HOME

SK3 continues the family desiqn DNA, with the automotive-gradeintelligent full-LED headlights and the high-intensity light sources,penetrates the night. lts automatic identification and delayed shutdown funtions, makes riding safer.

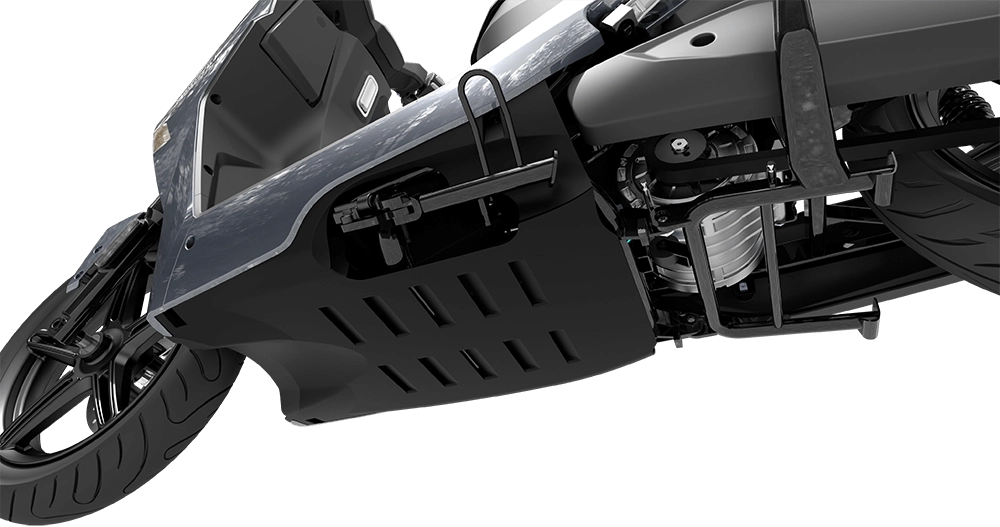

brakes

BRAKES SAFE STOPPING

When you apply the brakes in an emergency, the CBS braking system splits the braking force between the front and rear brake discs, reducing stopping distance and ensuring safe stopping at high speeds.

EVERY BRAKING MAKESYOU REST ASSURED

The front and rear dual hydraulic shock absorption allow you to

drive as if walking on a flat ground, and the control is handy.

Specification

PERFORMANCE

Top Speed

90km/h

Range 70km(with 45 kph)

DIMENSION

L*W*H 1993mm*742mm*1136mm
Saddle Height 790mm
Ground Clearance 155mm
Wheelbase 1360mm
Weight(G.W) 94kg(without battery)
Max.permissible Total Weight 282Kg
POWERTRAIN
Motor Mid Motor
Controller FOC
Max Power 6.3kW
Continue Rated Power 4.0kW
Battery 72V,36Ah
Charging Time(8A) ≈4.5h
Ride Mode 1/2/3/R
CHASSIS
Brake System Disc Brake
Wheels Tire

100/80-14

120/70-14

Rim

Aluminium Alloy

SMART&FEATURES

Safety System

GPS+Transaction Alarm

Screen TFT
USB 5V/1A
Touch-start Display
All-around LED Lights
