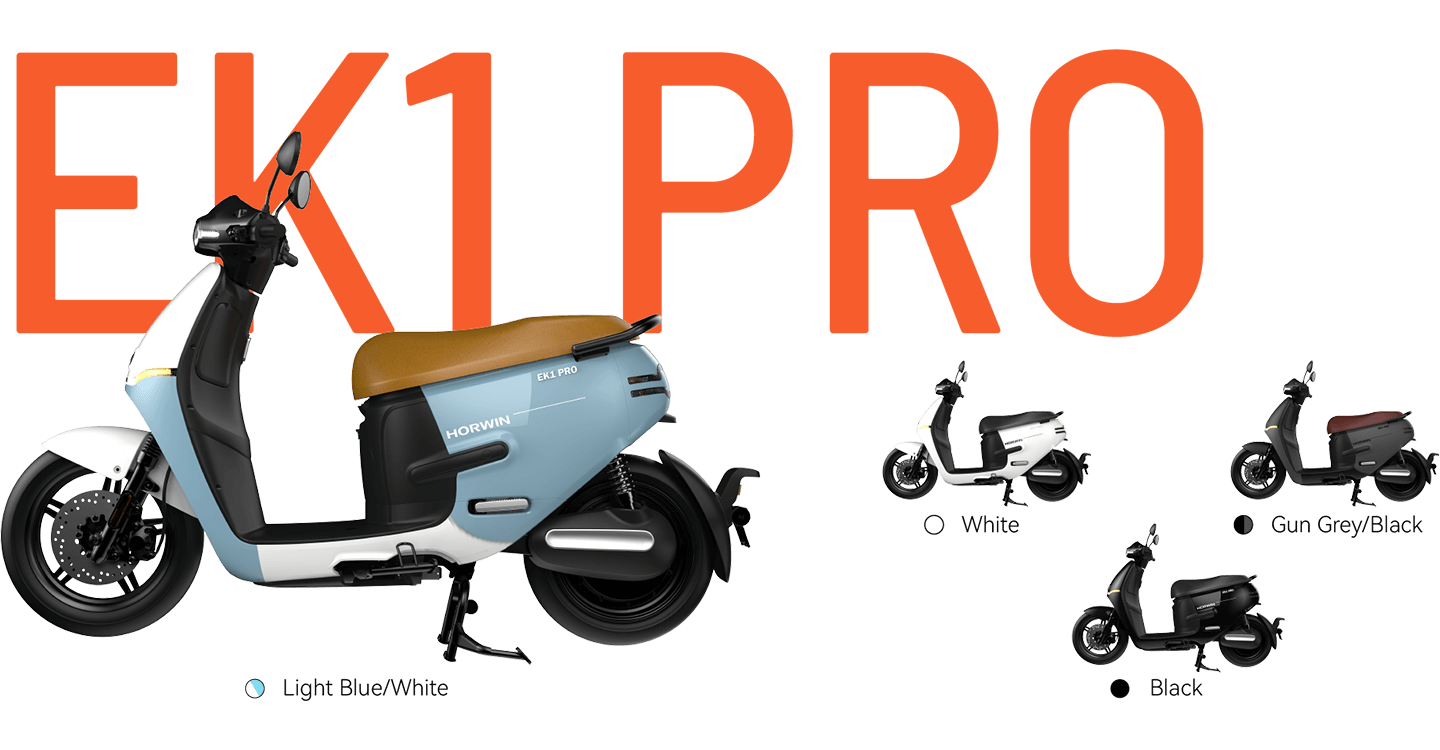

EK1 PRO - HORWIN

Français





45 km/h

Top Speed

97 km

Range

3.0 KW

Peak Power

14° CLIMBING CAPACITY +

New 3000W Wheel Hub Motor:

Boosts climbing angle from 12° to 14°, making it adaptable to a wider range of terrains.

LONG RANGE

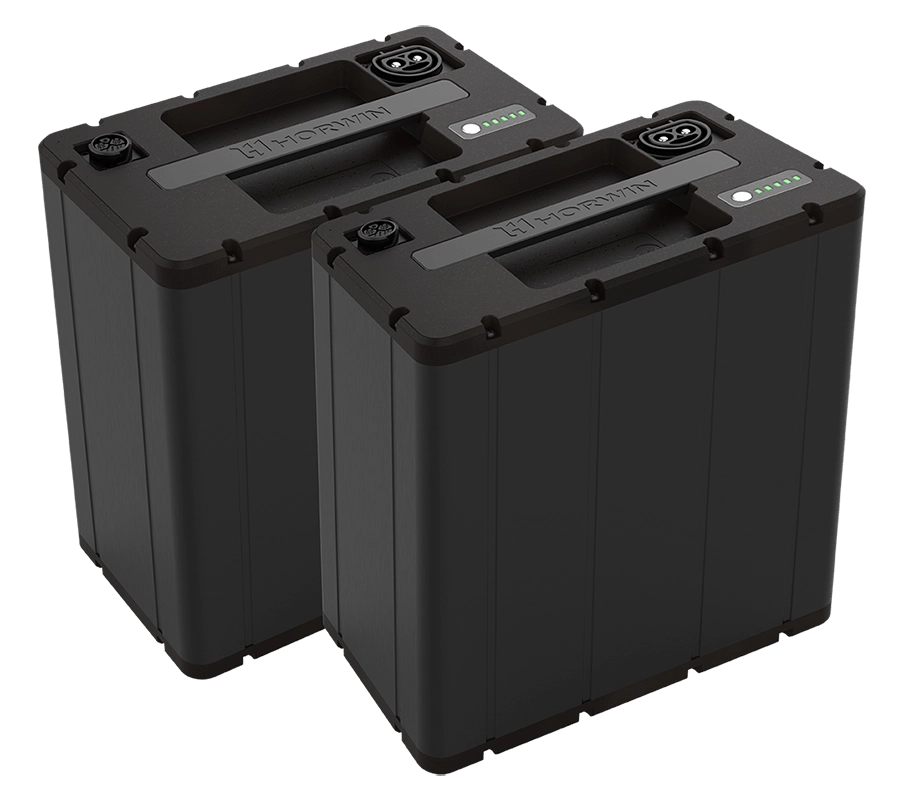

Dual 36Ah batteries provide a range of up to 166km, extending your journey.

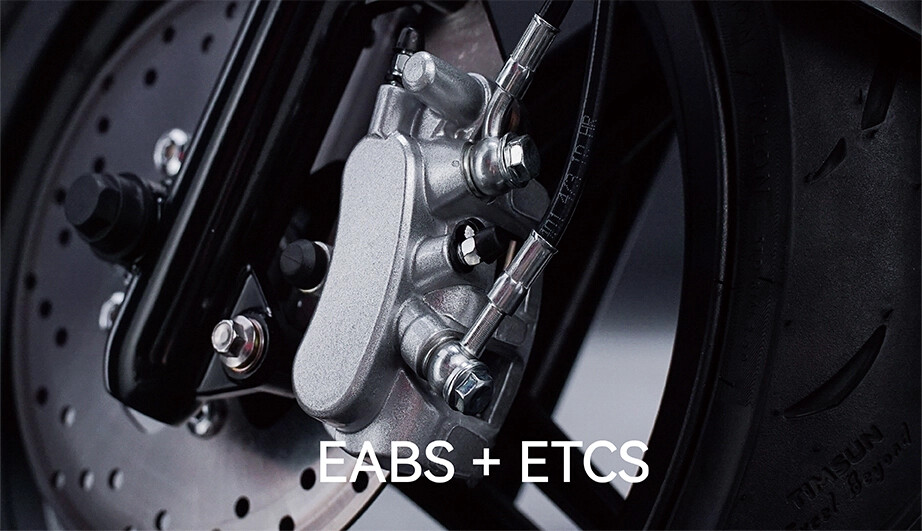

EABS + ETCS

Advanced electronically assisted braking and control for safer, more efficient rides.

Specification

PERFORMANCE
Top Speed	45km/h
Range	90km(with 40 kph)
DIMENSION
LWH	1920mm720mm1150mm
Saddle Height	780mm
Ground Clearance	132mm
Wheelbase	1290mm
Weight(G.W)	≤96.8kg(without battery)
POWERTRAIN
Motor	Hub Motor
Controller	FOC
Max Power	3.0kW
Continue Rated Power	2.0kW
Battery	72V,36Ah(optional with second battery)
Charging Time(8A)	≈4.5h
Ride Mode	1/2/3/R
CHASSIS
Brake System	Disc Brake
Wheels	Tire	100/80 R14
		110/70 R13
	Rim	Aluminium Alloy
SMART&FEATURES
Safety System	GPS+Transaction Alarm
Touch-start Display	●
All-around LED Lights	●
