95 km/h

Top Speed

150 km

Range

6.3 KW

Peak Power

EK3_01

Highly efficient & economical

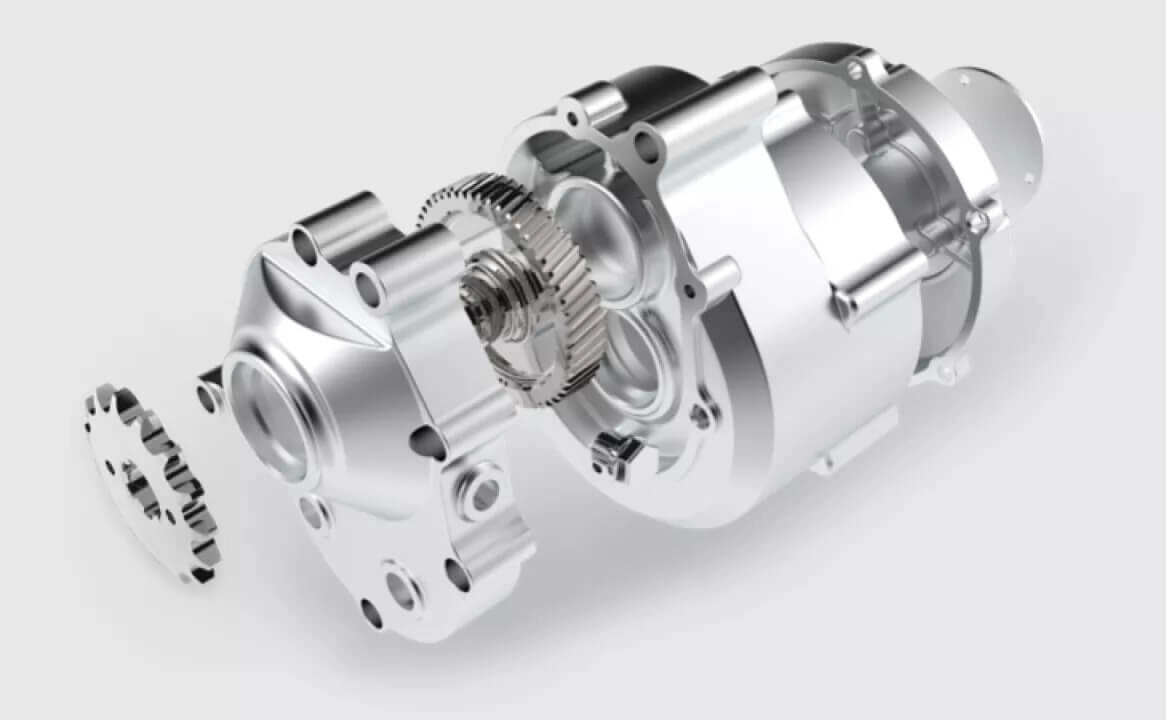

The centre motor generates 6.3 kW of power at a top speed of 90 km/h. Acceleration from 0 to 60 km/h in 6 seconds.

CBS brake system

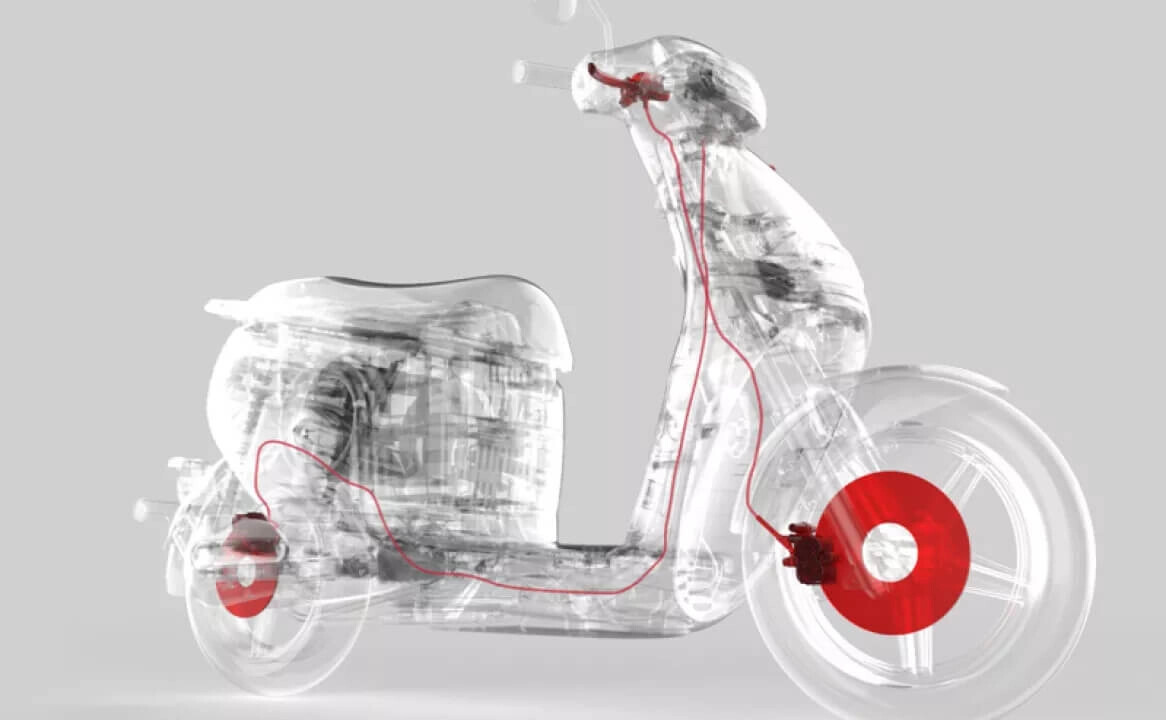

The front and rear disc brakes shorten the braking distance. The CBS braking system ensures safe braking at high speed.

EK3_02
EK3_03

BATTERY WITH ITSOWN MANAGEMENT

The EK3 scooter can be equipped with two lithium-ion batteries that are easily removable.The SOc monitoring system and the modern battery management system can prevent malfunctions.

Among other things, they provide protection against over-charging, discharging, over-voltage, short circuitand monitor the temperature of the batteries. The battery life is over 1000 cycles. The standard chargingcurrent is 10A. The charging time of one battery is 4 hours.

An intelligent charger is used for this.

36 Ah

BATTERY &

TWO BATTERIES

150 KM

MAX. RANGE

(45 KM/H)

4 H

(ONE BATTERY)

CHARGING TIME

SAFE RIDING

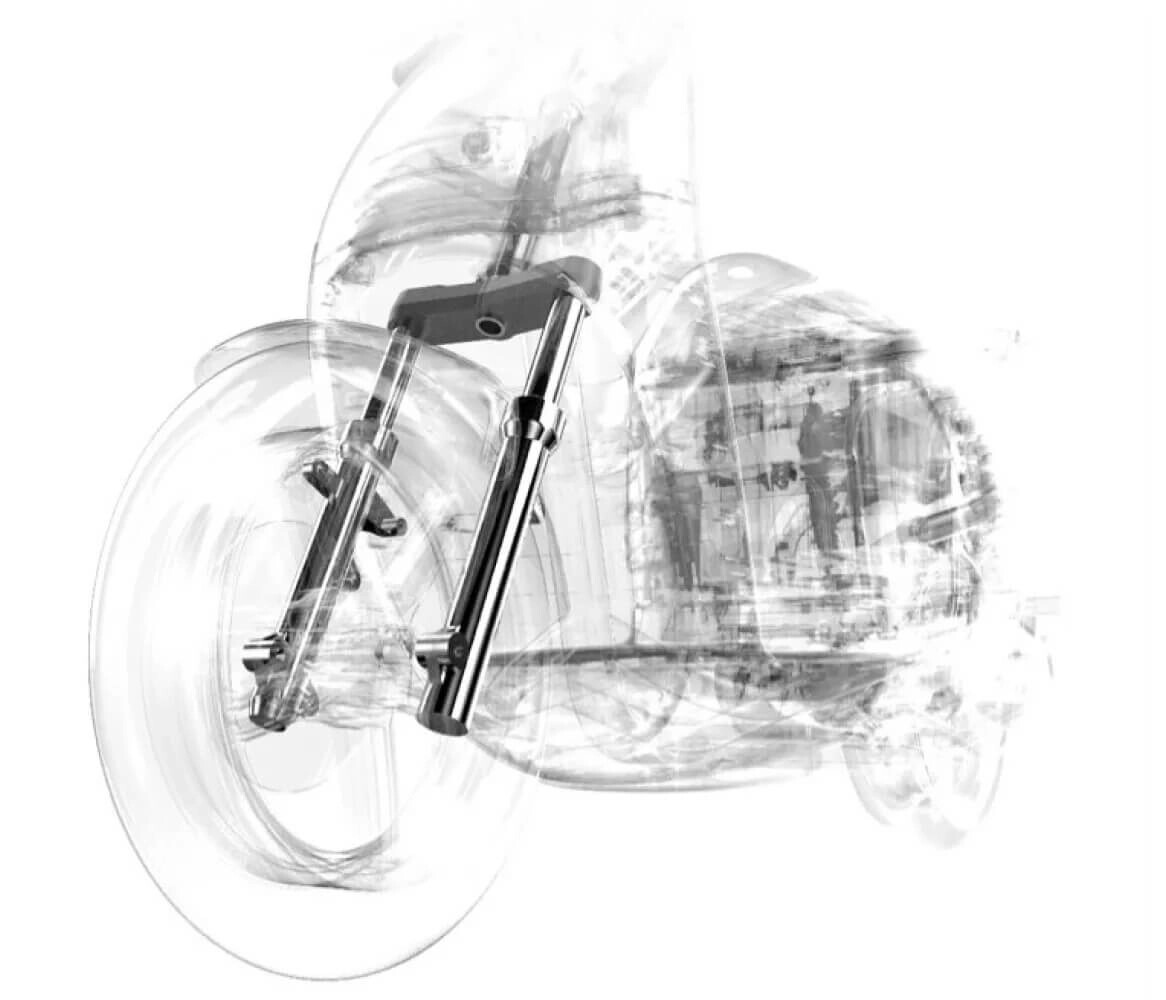

Dual hydraulic shock absorbers front and rear provide the driver with an excellent and safe drivingexperience, regardless of road conditions.

EK3_05

Specification

PERFORMANCE

Top Speed

95km/h

Range 150km(with 2 batteries)

DIMENSION

L*W*H 1900mm*690mm*1130mm
Saddle Height 780mm
Ground Clearance 125mm
Wheelbase 1310mm
Weight(G.W) 291Kg
POWERTRAIN
Motor Mid-motor
Controller FOC
Max Power 6.3kW
Continue Rated Power 4.0kW
Battery 72V,36Ah
Charging Time(8A) ≈4.5h
Ride Mode 1/2/3/R
CHASSIS
Brake System CBS+disc Brakes
Wheels Tire

100/80-14

110/70-13

Rim

Aluminium Alloy

SMART&FEATURES

Safety System

GPS+Transaction Alarm

Touch-start Display
USB 5V/1A
Keyless Go
All-around LED Lights
